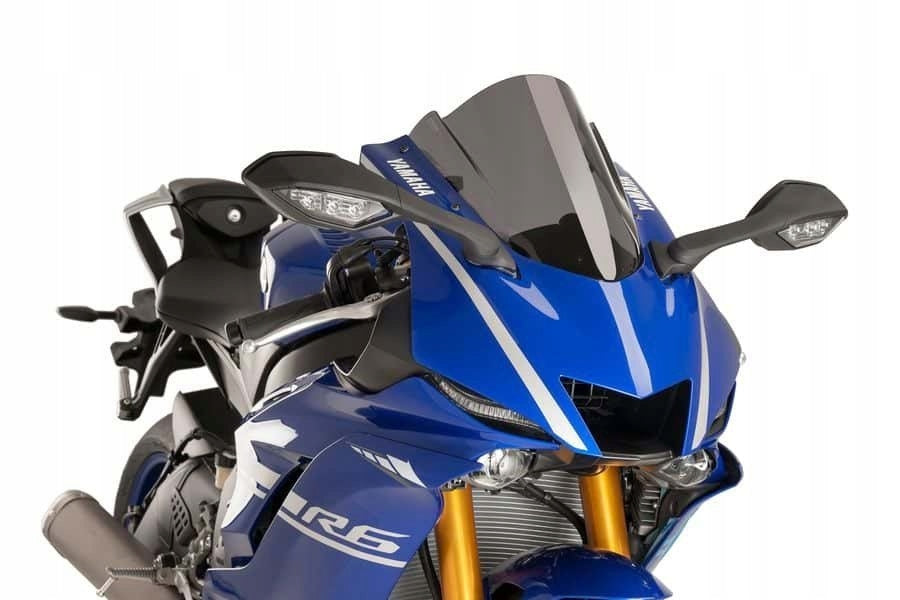

PUIG SPORT WINDSCREEN FOR YAMAHA YZF R6 17-20

PUIG sports windscreen - with a characteristic, additional hump in the middle that improves aerodynamics (double bubble, double hump).

Designed in a virtual wind tunnel. High optical quality (acrylic).

Mounted in place of the factory one, using factory screws. Has a German TUV certificate.

Improves protection by 23.0%!

Improves wind protection on the motorcycle by 23.0% - without losing aerodynamics (cX coefficient), by reducing the force acting on the helmet and the body. The PUIG visor breaks a pressure equal to 0.46 Kgf.

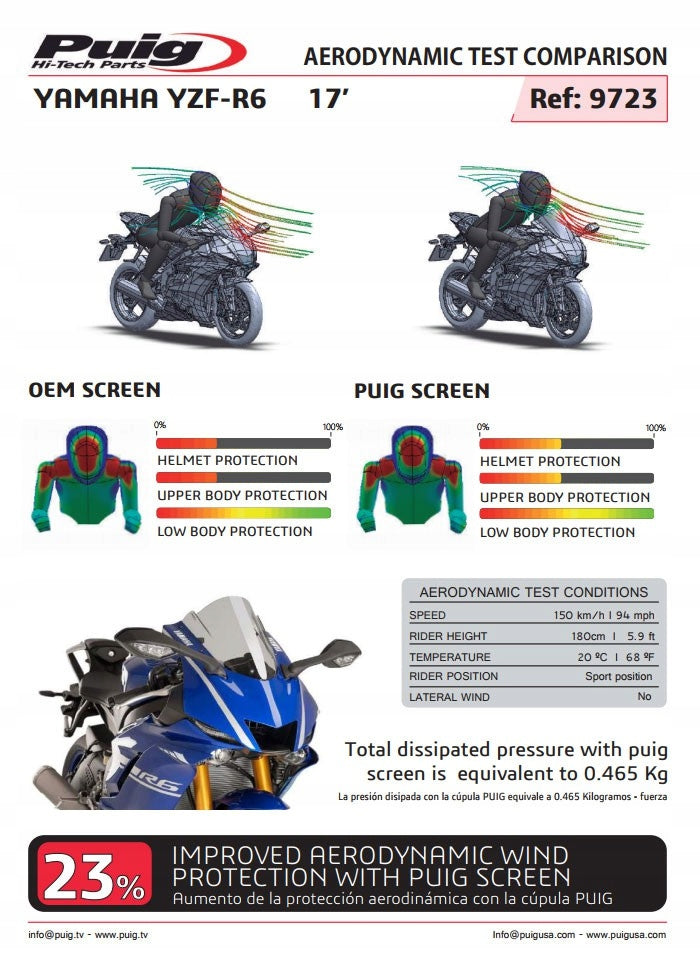

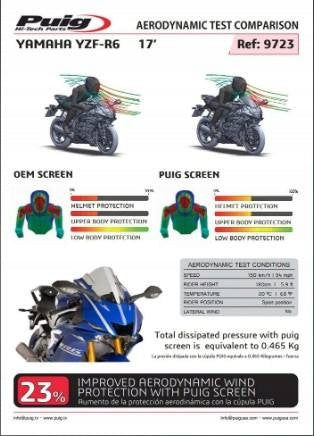

Test conducted in the PUIG virtual wind tunnel. Test environment: speed 150 km/h, driver height 180 cm, standard position, temperature 20 degrees C, no wind. The diagram is in the subject attachments.

Application:

Yamaha YZF-R6 2017-2020

Color: Dark Tinted

Form

Z-Racing

Dimensions (length x width)

360x285mm

Length

+30 mm from factory

Thickness

3mm

Material

High strength acrylic

Fit

Dedicated product

Producer

PUIG (Motoplastic SA Spain)

Product code: 9723F
